Toyota Camrey 1997-1999

NOTE : To program the remote transmitters the PRG(Program) circuit of the Wireless Door Lock ECU

Requires grounding. This can be performed by locating the Mirror Control Switch to the side of the

Steering wheel.

NOTE : Maximum 2 remote control transmitters can be programmed.

With the ignition KEY out, disconnect the Mirror Control Switch harness.

Using a suitable jumper/wire cable connect Terminal 2 (PRG) to Terminal 10 (GND)

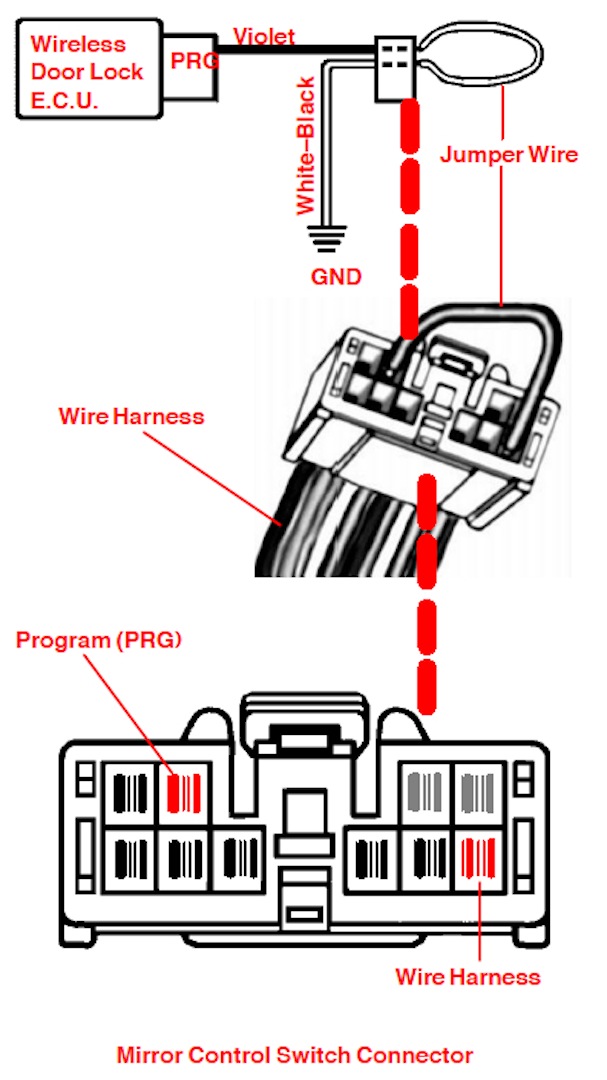

NOTE : Please see picture for wire colours and connector layout.

The doors will LOCK to confirm programming mode has been selected.

Press any button on the first remote transmitter to be programmed, the doors will LOCK to

confirm programing is a success.

Repeat step 4 for additional remote transmitter.

Disconnect jumper/wire.

RS3000 (VIP)

DEALER FITTED REMOTE KEYLESS ENTRY PROGRAMMING

NOTE: Maximum of 8 remote transmitters can be programmed.

NOTE : From 1998 MY the remote transmitters were updated from BLACK to GREY. The new GREY remote transmitters will not work on the older vehicles.

ADD REMOTE TRANSMITTER

1. Locate the RS3000 ECU.

The ECU locations are as follows :

            4runner(1999MY) : Behind panel right hand side of steering wheel, older models under drivers seat.

            Avalon : Under passenger seat.

            Camry (1998/1999MY) Older models located under drivers seat.

            Celica : Under drivers seat.

            Corolla : Under drivers seat.

            RAV4 : Under drivers seat.

            Sienna : Behind panel right hand side of steering wheel.

            Solara : Centre console in storage compartment.

            T100 : Under drivers seat.

            Tacoma : Under drivers seat.

            Tercal : Under drivers seat.

1. Insert ignition key, and turn ON.
2. PRESS and HOLD the ECUPROGRAMMINGSWITCH for 3 seconds (Located on the side of the ECU)

NOTE : The STATUS MONITOR LED will light for 5 seconds.

NOTE : Please perform the next step within 5 seconds.

PRESS and release either button on the remote transmitter.

NOTE : The STATUS MONITOR LED will turn OFF and the sounder will sound once.

Turn OFF the ignition, the remote transmitter is now programmed.

ERASE ALL REMOTE TRANSMITTERS

Insert ignition key, and turn ON.

PRESS and HOLD the ECUPROGRAMMINGSWITCH for 3 seconds (Located on the side of the ECU)

NOTE : The STATUS MONITOR LED will light for 5 seconds.

NOTE : Please perform the next step within 5 seconds.

PRESS and HOLD the ECUPROGRAMMINGSWITCH for 3

NOTE : The STATUS MONITOR LED will flash 3 times, and the sounder will sound 3 times.

Turn ignition OFF, all remote transmitters are now erased.
